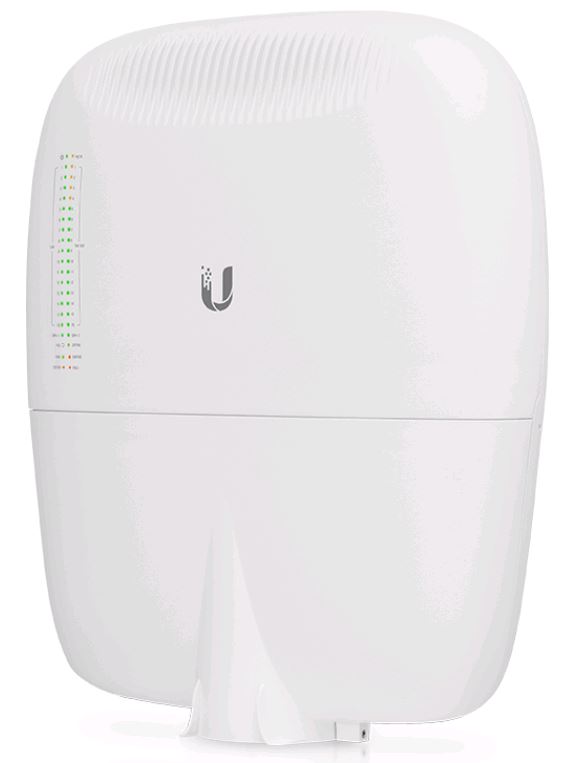

Ubiquiti EdgePoint S16 Outdoor PoE Switch (EP-S16)
Ubiquiti EdgePoint S16 Outdoor PoE Switch (EP-S16)
Regular price
$569.00 AUD
Regular price
Sale price
$569.00 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Outdoor network distribution for demanding UISP and WISP deployments.
The Ubiquiti EdgePoint S16 combines switching, fibre uplinks and flexible PoE in a weather-resistant enclosure for pole- or wall-mounted network sites.
Why choose the EdgePoint S16
- 16 Gigabit Ethernet ports: connect outdoor radios, cameras and other network equipment from one distribution point.
- 2 × 1/10 Gbps SFP+ ports: add high-capacity fibre uplinks for tower, campus or remote-site backhaul.
- Flexible PoE: ports 1–4 support 54V or 24V passive PoE output; ports 5–16 support PoE/PoE+ or 24V passive PoE output.
- Outdoor-ready mounting: the enclosure supports pole or wall installation and is rated for operation from -40 to 65°C.
Before you buy
- Confirm that model EP-S16 fits your existing UISP or EdgeMAX network design and management workflow.
- Plan the power source for the switch and the connected PoE load. Supported input is 42–56V DC; -48V is not supported.
- PoE modes and voltages differ by port. Verify the required voltage and polarity of every powered device before enabling PoE output.
- If the switch is powered by passive PoE on port 1 or 2, do not configure that same input port for PoE output.
- Confirm suitable mounting, earthing, surge protection and outdoor-rated cabling for the installation site.
Technical highlights
| Model | EP-S16 |
|---|---|
| Ethernet | 16 × 10/100/1000 RJ45 ports |
| Fibre uplinks | 2 × 1/10 Gbps SFP+ ports |
| Power input | 54V DC terminal input or passive PoE input on ports 1 and 2 |
| Supported voltage | 42–56V DC; -48V is not supported |
| Maximum device consumption | 40W, excluding PoE output |
| Operating range | -40 to 65°C; 10–90% noncondensing humidity |
| Mounting | Pole or wall mount |
| Warranty | 12 months |
Price, delivery and support
Price: AUD 569 including GST. Delivery is calculated at checkout. Stock availability is synchronised from the authorised supplier feed.
Need help checking your design? Contact Nimbryte before ordering. You can also review the manufacturer technical specifications.
Specifications are based on Ubiquiti and authorised supplier data for EP-S16. Confirm compatibility, PoE mode and installation requirements for your exact deployment before purchase.
